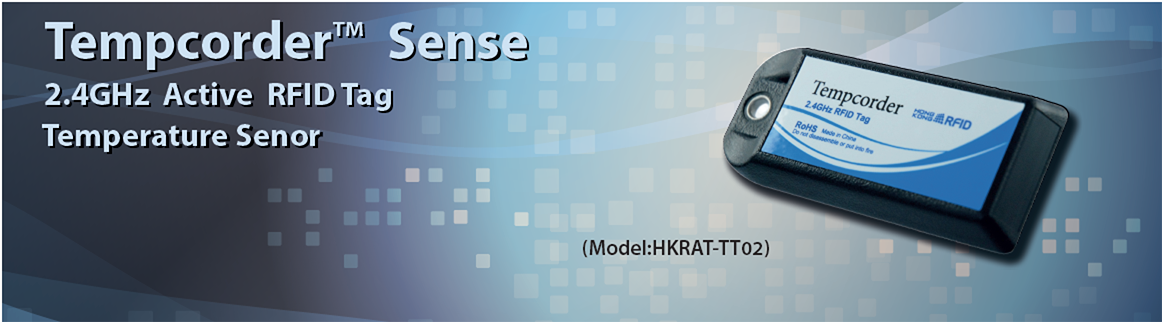

♦     The Tempcorder™ Active Tag is a fully wireless device which provides excellent reading range and read/write reliability for different applications such as environment control, rail track monitoring, hazard prevention and so on.

♦     Our Tempcorder™ tag is durable for different applications, it performs reliably in real world environments around liquid, metal, and other RF-unfriendly conditions, and ensuring an accurate readability. It can be read at a long distance up to 50 meters. Its anti-collision ability meets more than 100 tags simultaneously.

♦     It can be used in temperature monitoring to deliver accurate real-time temperature data to central location. It allows operators the flexibility in de-signing monitor and control system with the software program.

♦     Besides, the battery life can last for more than 3 years, with its robust cover; it enables the most cost effective operation in the long term.



♦       Waterproof, dust proof, shock proof, IP68

♦       Durable, Long battery life

♦       Wireless temperature sensor

♦       Accurate thermometers

  Frequency

2.4GHz ~2.5GHz ISM



RF Power Output

0dBm (1mW)



Power

16~18μA, 3V



Modulation

GFSK



Data Rate

1Mbps



Anti-Collision

Read more than 100 tags simultaneously



Operation

Read only



Battery Life

Around 3 years(battery life measured at 3-second motion beacon interval)



Reading Range

30 to 50 meters (Depend on Reader)

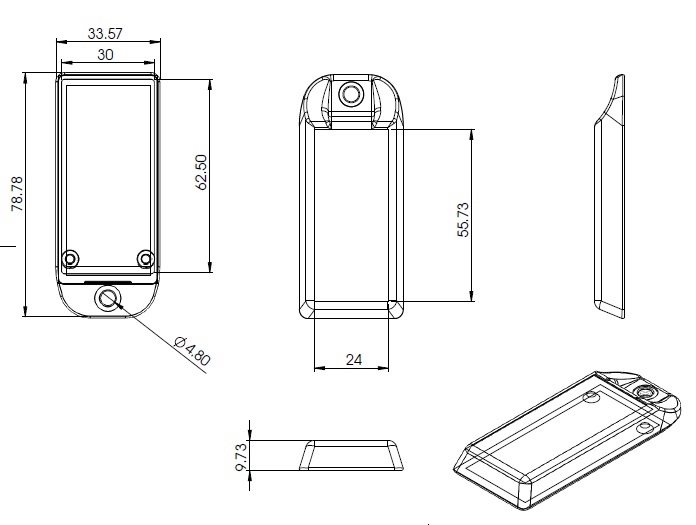

Dimension

78.8*33.6*9.7mm



Detect Temperature range

-20ºC to +70ºC



Temperature Accuracy

+/- 1ºC



Temperature Resolution

0.1ºC

Product Certificate: FCC & CE
