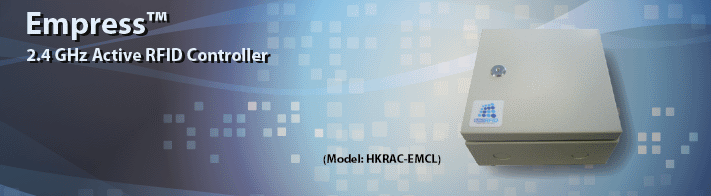

♦     HKRAL-EMCL Active Controller monitors our Active RFID Tags. The controller also enable programmable distributed control of Safety, Security and Visibility Solutions or other management systems as well as local alert device outputs without the need of a host computer.

♦     All active controllers may be networked over standard wired/wireless IP networks to host RTLS and security management application servers.



  • Stores up to thousands of Tag ID
  • Sensitive to Active RFID tag
  • Long/ Short Range Identification
  • Anti-collision capability
  • Multi-reading

CPU:

32 bit ARM Microprocessor

Number of User Cards:

1000 cards

Event Buffer:

1200 events and log data

Power:

G12 VDC, 500mA

Reader Port:

2 x RS232 / RS485 interface only for EmpressTM Readers

Communication:

TCP/IP

Output:

1 relay outputs

Operating Temperature:

-20-60 ºC

Operating Humidity:

95%(Non-condensing)

Dimension:

200mm * 200mm * 100mm

Weight:

2.5kg

Other:

Metal casing
