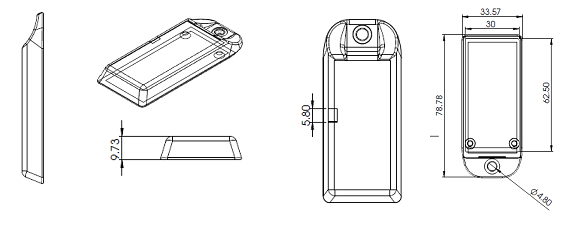

  •    Drawings
  •  Downloads

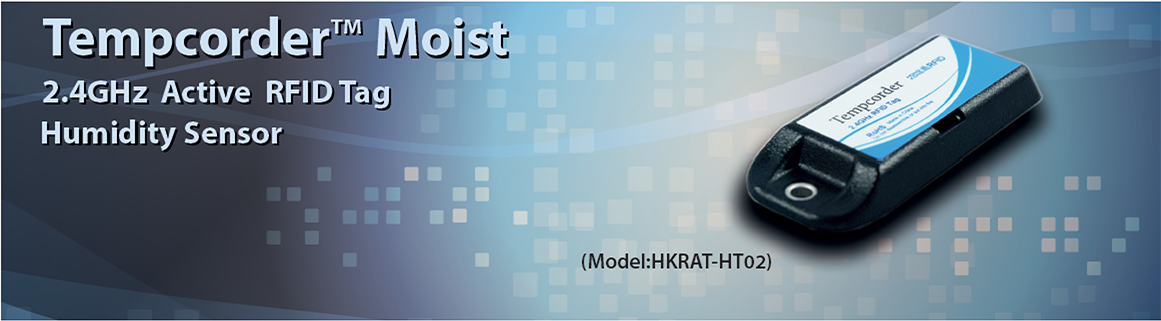

♦     Moist Tag HKRAT-HT02 is equipped with a humidity sensor of up to 1% resolution enabling it to deliver real time humidity and temperature data for environment monitoring applications. Instant humidity and temperature information are being sent along with the tag ID to the reader and then the central server periodically empowering accurate and timely data for strict environment control and monitoring applications.

♦     Moist Tag HKRAT-HT02’s design is robust yet compact making the attachment of it onto different objects easy and firm. Along with the tag’s replaceable battery and long battery life features, Moist Tag HKRAT-HT01 makes a cost effective choice for humidity sensing applications.



♦       Measures humidity range of 0-100%

♦       Accurate humidity sensor

♦       Replaceable battery with long battery life

♦       Wide temperature range

♦       Durable with robust plastic

  Frequency

2.4GHz ~2.5GHz ISM



RF Power Output

0dBm (1mW)



Power

16~18μA, 3V



Modulation

GFSK



Data Rate

1Mbps



Anti-Collision

Read more than 100 tags simultaneously



Operation

Read only



Battery Life

Around 2 years(battery life measured at 5-second motion beacon interval)



Reading Range

30 to 50 meters (Depend on Reader)



Dimension

78.8*33.6*9.7mm



Detect Temperature range

-30ºC to +80ºC



Operation Temperature Range

-30ºC to +80ºC



Temperature Accuracy

+/- 1ºC



Temperature Resolution

0.5ºC



Humidity Detection Range

0 - 100%



Humidity Resolution

1%



Humidity Accuracy

+/- 5%

Product Certificate: FCC & CE
