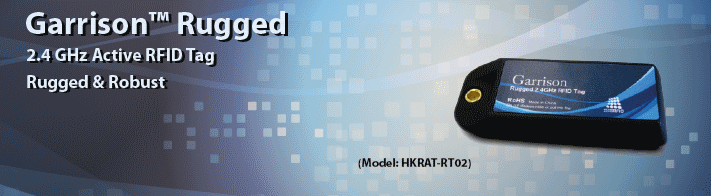

♦     The Garrison™ Active Tag provides excellent reading range and reliability for industrial applications such as asset tracking, ware-house management, logistic and supply chain management.

♦     It is durable for different applications, it performs reliably in envi-ronments with metal and other non-RF-friendly items. This ensures an accurate readability.

♦     It enables the most cost effective operation in the long term. The battery life can last for more than 5 years. With its robust cover, it is suitable for working under heavy duty environment.

♦     Garrison™ tag can have GPIO which is optional to provide sensor functions. LED light and button is also supported.

♦       Encoded Radio Transmission at 2.4GHz

♦       Waterproof, dust proof, shock proof, IP65

♦       Replaceable Battery

♦       Mounting Design

♦       Stable performance

♦       Durable with special plastic

♦       Customizable Beacon Rates

♦       Superior Anti-Collision Technology for High Tag Densities



  Frequency

2.4GHz ~2.5GHz ISM



RF Power Output

0dBm (1mW)



Power

16~18μA, 3V



Modulation

GFSK



Data Rate

1Mbps



Anti-Collision

Read more than 100 tags simultaneously



Operation

Read only, With unique ID



Battery Tupe

Lithium CR2450 replaceable coin cell



Battery Life

Around 3 years (battery life measured at 3-second motion beacon interval



Reading Range

30 to 50 meters (Depend on Reader Antenna)



Dimension

78.8*33.6*9.7mm



Add-on:

Accelerometer, Vibrator

Product Certificate:

FCC & CE
