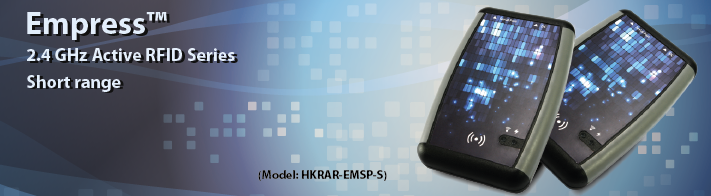

♦     EMPRESS™ Short Range Active Reader (P/N: HKRAR-EMSP-S) is compact and therefore is easy to install with simple form factor.

♦     EMPRESS™ is user friendly and easy to develop. It can work with controller for door or gate access applications.

♦     With short reading distance, it can be used for tag association, identity confirmation and/or approval. In addition, it is suitable for high security purpose.

♦     2.4GHz Active RFID Reader uses the advanced 0.18um CMOS IC, and is well-fitted for being a Data Collector.

♦     The Omni-directional antenna of EMPRESS™ can identify tags from all directions. Users can adjust the identification distance according to actual situation in order to make identification more accurate

♦       Easy to develop

♦       Tag Association

♦       Ultra Short Range Identification

♦       Sensitive to Active RFID tag

♦       Suitable for wide range of applications



  Direction

Omni-directional,build in antenna



Range

25m or below, minimum to 10cm (adjustable)



Frequency

2.4GHz--2.5GHz ISM



RF Output Power

0dBm



Sensitivity

-85dBm



Power

500mA,5V, Power adapter



Modulation

GFSK



Software Interface

Comport Communication Protocol



Data Rate

1Mbps



Operating Temperature

-40~60 ºC



Operating Humidity

95%(Non-condensing)



Anti-collision

50 tags (depends on the reading distance)



Interface

RS232



Dimension

117mm * 79mm * 24mm
