♦     The Hussar™ Active Tag provides excellent reading range and reliability for high value applications such as people or asset tracking, inventory management, and customer relationship management and so on.

♦     It is smart card size, fit to ISO card sticker and can be used in vertical or horizontal. Its battery is replaceable and has great RFID performance but of low cost. Photos or any required in-formation can be shown and displayed on the card for identification purpose. This makes Hussar™ the best choice for People Tracking and Location System.

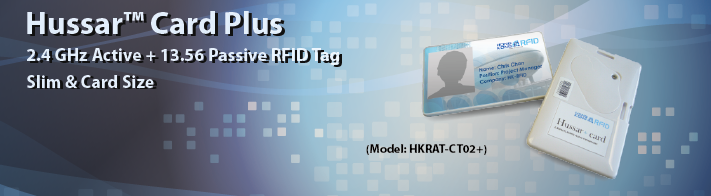

♦     HKRAT-CT02+ is an upgraded model of HKRAT-CT02, which has passive RFID tag functionality added. Not only does it bring more flexibility for users, it is also suitable for a wider range of applications, including those requiring both long and short reading range and storage. HKRAT-CT02+ is highly recommended for access control, payment and CRM applications.

♦     There is no interference between the two different RFID systems. CT02+ can work as a proximity card while maintaining the special features of 2.4GHz Active RFID.

♦     With its slim design, stable and impressive performance along with our active readers, HKRAT-CT02+ would make an excellent and extendable management system.

♦       Stylish outlook

♦       No interference with other 2.4GHz network

♦       Low power consumption

♦       Battery replaceable

♦       Duel Frequency (Active + Passive)

♦       Satisfy both short and long reading range

  Frequency

2.4GHz ~2.5GHz ISM & 13.56MHz



RF Power Output

0dBm (1mW)



Power

16~18μA, 3V



Modulation

GFSK



Data Rate

1Mbps



Anti-Collision

Read more than 100 tags simultaneously



Operation

Read only



Battery Type

Lithium CR2032 replaceable coin cell



Battery Life

Around 2 year (battery life measured at 1-second motion beacon interval)



Reading Range

30 to 50 meters (Depends on Reader Antenna)



Dimension

87mm x 55mm x 4.8mm

Product Certificate:FCC & CE
