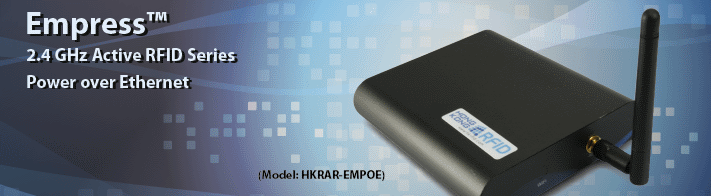

♦     EMPRESS™ Active Reader (P/N: HKRAR-EMPOE) has Power over Ethernet (POE) connection. POE is a technology for wired Ethernet LANs (local area networks) that allows the electrical current necessary for the operation of each device to be carried by the data cables rather than by power cords. Doing so minimizes the number of wires that must be strung in order to install the network. Once connected, the HKRAR-EM series is instantly become part of the network

♦    The result of using HKRAR-POE is lower cost, less downtime, easier maintenance, and greater installation flexibility than with traditional wiring

♦    2.4GHz Active RFID Reader uses the advanced 0.18um CMOS IC, and is well-fitted for being a Data Collector.

♦    The Omni-directional antenna of EMPRESS™ can identify tags from all directions. Users can adjust the identification distance according to actual situation in order to make identification more accurate



♦       POE connection

♦       Easy for Truncking

♦       Sensitive to Active RFID tag

♦       Long Range Identification

♦       Suitable for wide range of applications

  Direction

Omni-directional, standard rubber antenna



Range

30-50m indoor environment, 50-70m with line of sight



Frequency

2.4GHz--2.5GHz ISM



RF Output Power

0dBm



Sensitivity

-85dBm



Power

Power over Ethernet(POE)



Modulation

GFSK



Software Interface

.Net Platform, Xtractor™



Data Rate

1Mbps



Operating Temperature

-40~60 ºC



Operating Humidity

95%(Non-condensing)



Anti-collision

>100 tags in first read
>200 tags shown within 3 sec



Interface

Cable Connection:RJ45Plug, TCP/IP



Dimension

125mm * 108mm * 26mm

*Remarks: Reading range is subjected to RF environment and RF power of tag, 100m is achieved in open space using HKRAT-NT02 active tags which are placed 1m above ground.

Product Certificate: FCC & CE
