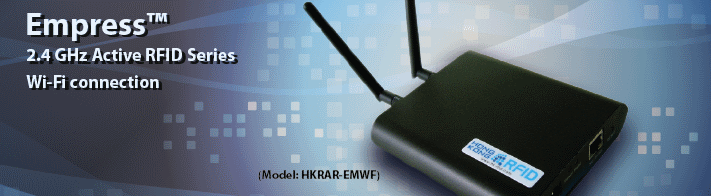

♦     EMPRESS™ Active Reader (P/N: HKRAR-EMWF) is wireless and therefore is easy to install with low installation costs. Through IEEE 802.11b/g (EMWF version), the reader gathers and transmits data to the wireless router. Once powered, the HKRAR-EM series is instantly connected and become part of the network.

♦     EMPRESS™ is user friendly with a web interface. You can get data and do analysis with a PC in an efficient way with its Wi-Fi feature.

♦     2.4GHz Active RFID Reader uses the advanced 0.18um CMOS IC, and is well-fitted for being a Data Collector.

♦     The Omni-directional antenna of EMPRESS™ can identify tags from all directions. Users can adjust the identification distance according to actual situation in order to make identification more accurate.

♦       Wi-Fi network

♦       Sensitive to Active RFID tag

♦       Long Range Identification

♦       Suitable for wide range of applications

♦       Peer to peer communication (Optional)

  Direction

Omni-directional, standard rubber antenna



Range

30-50m indoor environment, 50-70m with line of sight



Frequency

2.4GHz--2.5GHz ISM



RF Output Power

0dBm



Sensitivity

-85dBm



Power

500mA,5V, Power adapter



Modulation

GFSK



Software Interface

.Net Platform, Xtractor™



Data Rate

1Mbps



Operating Temperature

-40~60 ºC



Operating Humidity

95%(Non-condensing)



Anti-collision

>100 tags in first read
>200 tags shown within 3 sec



Interface

Wireless Connection: WI-FI, IEEE 802.11b/g.
Cable Connection: RJ45 Plug, TCP/IP



Dimension

125mm * 108mm * 26mm

*Remarks: Reading range is subjected to RF environment and RF power of tag, 100m is achieved in open space using HKRAT-NT02 active tags which are placed 1m above ground.

Product Certificate: FCC & CE

COMING SOON......
