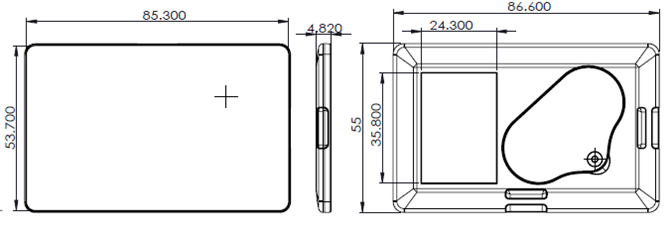

  •    Drawings
  •  Downloads

♦     The Hussar™ Active Tag provides excellent reading range and reliability for high value applications such as people or asset tracking, inventory management, and supply chain manage-ment and so on.

♦     It is smart card size, and can be used in vertical or horizontal. It has great RFID performance but of low cost. Photos or any required information can be shown and displayed on the card for identification purpose. This makes Hussar™ the best choice for People Management applications such as students and staff.
The Hussar™ tags is of standard size and thus can be fit to ISO card sticker. Its battery is also replaceable, which enables convenient application of the tags.

♦     Hussar™ tags could be mapped with user information stored in the database and such information could be retrieved instantly. User behavior like visiting frequency could be gathered with the help of Hussar™ tags. Such information could be used for ref-erence in future planning.

♦     With its slim design, stable and impressive performance along with our active readers, Hussar™ tags would make an excellent and extendable system.

♦       Stylish outlook

♦       Vertical or Horizontal

♦       No interference with other 2.4GHz network

♦       Low power consumption

♦       Battery replaceable

  Frequency

2.4GHz ~2.5GHz ISM



RF Power Output

0dBm (1mW)



Power

16~18μA, 3V



Modulation

GFSK



Data Rate

1Mbps



Anti-Collision

Read more than 100 tags simultaneously



Operation

Read only



Battery Type

Lithium CR2032 replaceable coin cell



Battery Life

Around 2 year (battery life measured at 1-second motion beacon interval)



Reading Range

30 to 50 meters (Depend on Reader Antenna)



Dimension

87mm x 55mm x 4.8mm

Product Certificate:FCC & CE
